  • R3G250-RE09-07
R3G250-RE09-07

R3G250-RE09-07

Manufacturer Part Number R3G250-RE09-07
Manufacturer ebm-papst Inc.

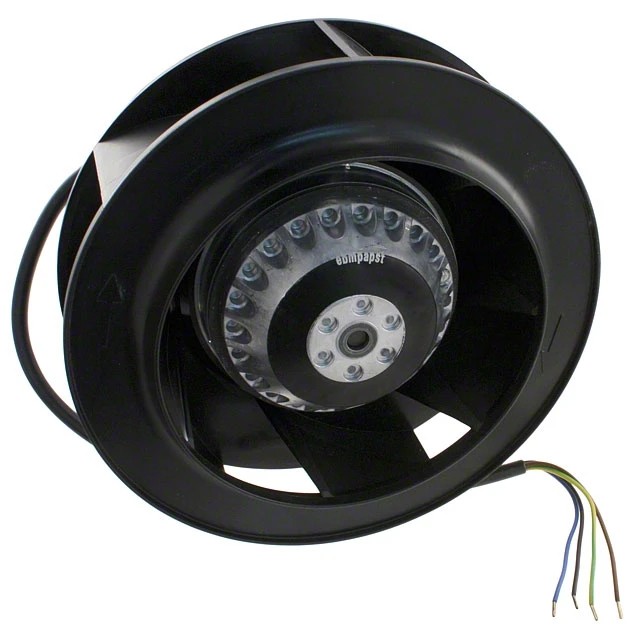

Description 250 MM EC CENTRIFUGAL FAN
Manufacturer Part Number R3G250RE0907
Series RadiCal? R3G250RE
Part Status Active
Voltage - Rated 230VAC
Size / Dimension Round - 255mm Dia
Width 99.00mm
Air Flow 829.9 CFM (23.24m3/min)
Static Pressure -
Bearing Type Ball
Fan Type Motorized Impellers
Features Electronic Commutation (EC), PWM Control, Speed Sensor (Tach)
Noise 76.0 dB(A)
Power (Watts) 170W
RPM 2510 RPM
Termination 2 Wire Leads
Ingress Protection IP54 - Dust Protected, Water Resistant
Operating Temperature -40 ~ 176~F (-40 ~ 80~C)
Approvals UL
Weight 3.9 lbs (1.8kg)
