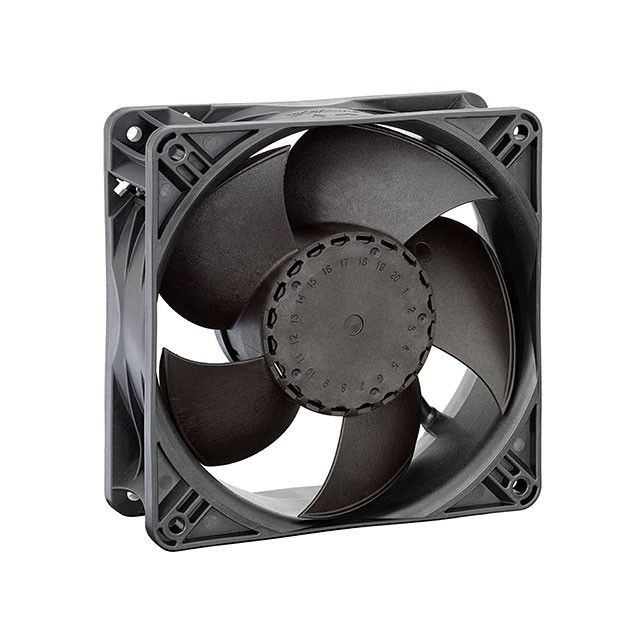

| Manufacturer Part Number | G3G120-BB03-16 |
| Manufacturer | ebm-papst Inc. |
| Description | MOTORIZED IMPELLER |
| Manufacturer Part Number | G3G120BB0316 |
| Series | G3G120 |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Rectangular/Rounded - 178mm L x 193.5mm H |
| Width | 229.0mm |
| Air Flow | - |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Blower, Centrifugal |
| Features | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 41.00W |
| RPM | 2200 RPM |
| Termination | 3 Wire Leads, 4 Wire Leads |
| Ingress Protection | IP44 |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Approvals | CSA, EAC, UL |
| Weight | - |
